To add a trend chart to a report:
Right-click in the report window and click Add Gadget. The Gadget Builder dialog box appears.

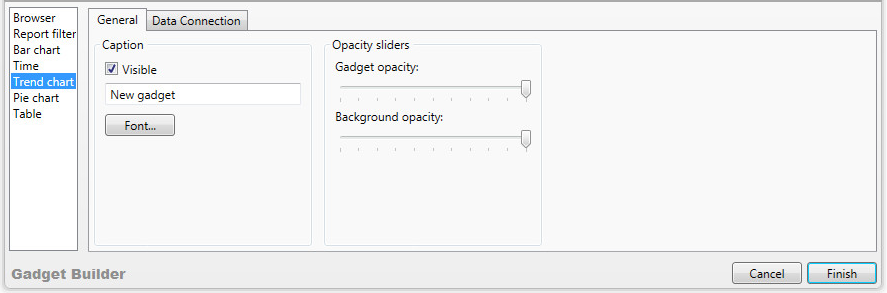

Click Trend chart. The General tab appears.
Under Caption:
To display the caption on the chart, select the Visible check box. To hide the caption, clear the Visible check box.
Optionally, type a new caption in the text box and click Font to format it.
Under Opacity sliders, set the Gadget opacity and Background opacity. You increase the opacity by making it less transparent.

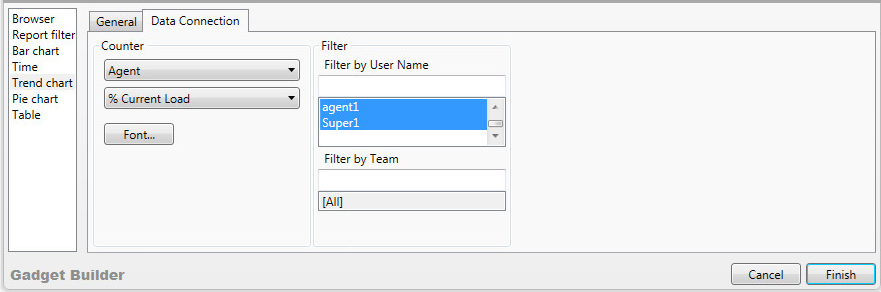

Click the Data Connection tab.
In the Counter selection list, click the category.
In the lower part of the list, click one statistic.
For details see:
Optionally, click Font to format the numerical value.
Under Filter, do one of the following:
To filter using regular expressions, type the criterion in the text box. For examples of regular expressions, see Filtering a Table Column.
To filter the data by one item, click the filter.
To select multiple filters, hold down Shift or Ctrl and click the filters.
To avoid filtering, click [All] (the default).
|
|
Note The text box has precedence over the list box. The list box is disabled when the text box is used. If the text box is empty and you select from the list, the text box is disabled. |
Click Finish.
The trend chart appears in the report window.
If you need to rearrange the report window, see To spread out cascaded reports.
